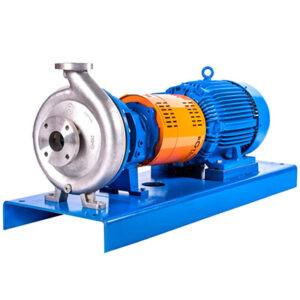

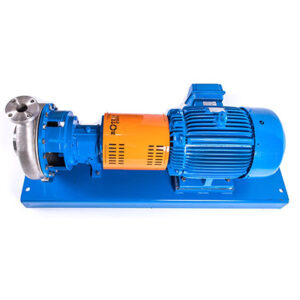

1196 Series Pump
The ANSI 1196 Series Pump is an ends suction frame mounted centrifugal pump designed to handle heavy-duty applications like oil, gas, hot oil, and high-pressure processes.
- Open impeller design
- 100% interchangeable with certain ANSI parts
- External impeller adjustment
- Max. Flow Rate: 7,000 GPM (441.6 lps)
- Max. Head: 900′ (275 m)
- Max Temperature: 260 C (500 F)

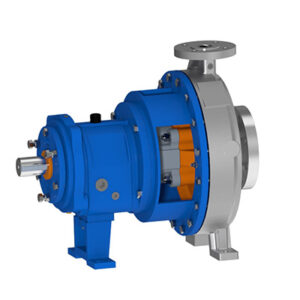

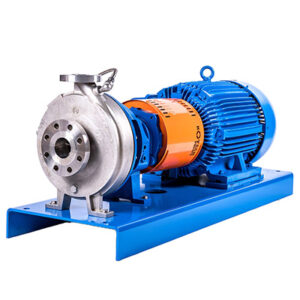

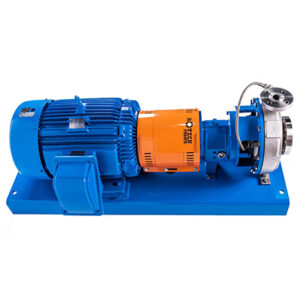

1196LF Series
Rotech’s 1196LF Series Pumps is similar in design to the 1196, but its purpose is more for low flow and high head applications.
- Open impeller design
- 100% interchangeable with certain ANSI parts
- Max. Flow Rate: Up to 220 GPM (13.9 lps)
- Max. Head 925′ (282 m)
- Max. Temperature: 371 C (700 F)
- Pressures: 450 PSIG (3102 kPa)
